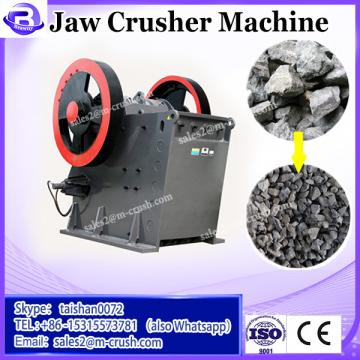

CJ Series Jaw Crusher with competitive price , jaw crusher for sale
- Jaw Crusher Machine
Jaw Crusher Machine
- China
- ISO/CE
- One set CJ Series Jaw Crusher with competitive price , jaw crusher for sale
- [email protected]
- as per model
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 22
- Shandong Brawny Industrial Co.,Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
CJ Series European type Jaw Crusher with competitive price
Product DescriptionMain Features for jaw crusher machine :
1.Sturdy Structure
Two kinds of Frames: Welded and Packaged. Usually, Small and medium sized model adopts welded, large model adopts packaged.
Welded frame adopts wide transitional round edge, significantly reducing the stress concentration, ensure the frame under equal strength. It owns the features of good impact resistance and low failure rate, bears same pressure, etc.
Packaged frame uses advanced modularization, no-welding frame structure design, high endurance strength and reliability. The whole set assembling design is convenient for the transporting and installation, especially suitable for installation of underground mine shaft, high altitude mine, as well as other nCJ Series Jaw Crusher with competitive price , jaw crusher for sale and difficult transporting place.
2.Extraordinary Cavity Design
Symmetrical V-shaped cavity design, high inclination-angle of the toggle, big stroke and reasonable speed, allows a bigger feeding size, higher capacity, uniform particle size and lower wearing of the plate.
3.Long Working Life of the Heavy-duty Movable Jaw Assembly.
Heavy-duty Movable Jaw Assembly adopts heavy-duty eccentric shaft, high quality heavy-load rolling bearings and finite element software optimized movable jaw plate ensuring impact resistance and high stability of moving jaw assembly; labyrinth seal and centralized lubrication system guarantee the bearing lubrication oil is not contaminated and lubrication becomes more convenient. Therefore the assembly can have a long working time and stability.
4.Shield Design for the Movable Jaw
Heavy shield is installed above the movable jaw to avoid the material impact. It can effectively protect the movable jaw and its internal bearing from damaging.
5.Overall Bearing Support
Overall cast steel bearing support fully compatible with the rack, avoiding the combined bearing support has a unnecessary radical load on the bearing during the fastening process, making the bearing to run more smoothly.
6.Convenient Particle Size Adjustment
JC series Jaw Crusher adopts mechanical or hydraulic adjustment for the discharge range, compared with shim adjustment, double wedge adjustment operations is simpler, secure, fast, and saves more downtime.
7.Integrated Motor Installation
Integrated installation of motor seat and frame can not only save installation space, reduce the length of v-belt, but also can prolong v-belt working time, since the frame, motor seat, synchronous move of motor, adjustable motor seat bring v-belt tension adjustment.
Technical Data
Model |
Max Feed edge(mm) |
Discharge Range Opening(mm) |
Capacity(t/h) |
Motor power(kW) |
Weight(t) |
CJ2031 |
425 |
40-150 |
50-200 |
55-75 |
7.95 |
CJ2440 |
500 |
60-175 |
85-300 |
75-90 |
15.6 |
CJ3040 |
640 |
70-200 |
120-490 |
90-110 |
23.2 |
CJ3343 |
680 |
100-225 |
160-510 |
110-160 |
33.7 |
CJ3749 |
800 |
110-250 |
260-810 |
132-160 |
49.3 |
CJ4255 |
850 |
125-250 |
360-920 |
160-200 |
56.5 |
CJ4763 |
1000 |
150-350 |
500-1250 |
220-250 |
90.3 |
CJ5971 |
1250 |
160-380 |
700-1500 |
335-400 |
125 |
Work shop
Successful case
Packing and Delivery
Our Culture Our Services Contacts
Jaw Crusher Machine is fit for dry and wet sieving, classification of powdery, granular and filamentary materials and dehydration of materials. If fine sieving is required CJ Series Jaw Crusher with competitive price , jaw crusher for sale can be satisfied by adopting high-efficiency screen mesh-cleaning device to improve the sieving. For wet sieving CJ Series Jaw Crusher with competitive price , jaw crusher for sale is especially fit for separation of sludge (waste water) and preliminary compression of mixed matter of solid and liquid materials.
hhhghj
Jaw Crusher Machine can do according to customers special demands. We provide our customers with high-quality Jaw Crusher Machine, advanced production technology and perfect after-sales services.CJ Series Jaw Crusher with competitive price , jaw crusher for sale Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
