Home>Products>Single Cylinder Hydraulic Cone Crusher>Aggregate DP single cylinder hydraulic cone crusher machine with 100 tph capacity in Russia

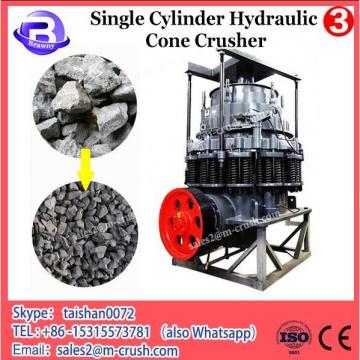

Aggregate DP single cylinder hydraulic cone crusher machine with 100 tph capacity in Russia
- Single Cylinder Hydraulic Cone Crusher
Single Cylinder Hydraulic Cone Crusher
- China
- ISO9001:2008
- One set Aggregate DP single cylinder hydraulic cone crusher machine with 100 tph capacity in Russia
- [email protected]
- 1150x1275x1240mm
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 177
- Shandong Brawny Industrial Co.,Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
Single cylinder hydraulic cone crusher is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy, etc. It can break or crush all kinds of medium hard or harder ore for mining, chemical building, materials and other industrial sectors. This kind of machine has the features of big crushing ratio, continuous operating, even granularity, automated hydraulic clearing system, high capacity, simple structure and low operating cost, suited perfectly for middle and fine crushing.
Product Features
1, Good grain shape and high efficiency
2, Strong crushing capacity
3, Run continuously and stably
4, Just replacing the fixed cone can achieve a variety of cavity shapes for fine crushing.
5, Adopt direct meta-contacting method, which facilitates replacing liner plates of mobile cone
and stationary cone
6, Double insurance controlled hydraulic and lubrication system can ensure the machine's
overload protection and good bearing lubrication.
7, Easy maintenance: The structure of cone crusher is simple and compact. It has the features of stable performance, not easy to fault and convenient maintenance.
Specifications
Model | DP-100 | DP-160 | DP-250 | DP-300 | |
Motor power(kw) | 75-90 | 110-160 | 132-250 | 200-315 | |
Stroke(mm) | 16,20,25 | 18,25,32,40 | 18,25,32,40 | 18,25,32,40 | |
Weight (T) | 9.8 | 12.8 | 23.2 | 38.5 | |
Max feeding size(mm) | Medium Coarse Extra coarse | 200 250 | 250 330 | 280 380 | 380 500 |
Capacity of middle crushing
DP-100S CAPACITY (t/h) | ||||||||||||
Discharging Stroke (mm) |
20 | 25 | 30 | 35 | 40 | 45 | ||||||
16 | 80-90 | 105-115 | 120-130 | 135-145 | 145-165 | 155-175 | ||||||
20 | 120-130 | 145-155 | 160-180 | 170-200 | 185-215 | |||||||
25 | 185-195 | 200-220 | 210-230 | |||||||||
DP-160S (t/h) | ||||||||||||
Discharging Stroke(mm) |
20 | 25 | 30 | 35 | 40 | 45 | 50 | |||||
18 | 110-140 | 140-170 | 160-190 | 180-210 | 200-230 | 230-260 | ||||||
25 | 170-220 | 190-240 | 210-260 | 230-280 | ||||||||
32 | 230-280 | 270-320 | 280-350 |
DP-250S (t/h) | |||||||
Discharging Stroke(mm) |
20 | 25 | 30 | 35 | 40 | 45 | 50 |
18 | 170-190 | 170-210 | 190-230 | 210-255 | 235-275 | 255-295 | |
25 | 220-270 | 255-315 | 290-345 | 320-350 | 330-350 | ||
32 | 360-400 | 380-420 | 400-420 | ||||
40 | 450-500 | 480-530 |
DP-300S (t/h) | ||||||||
Discharging Stroke(mm) |
45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
18 | 300-350 | 325-375 | 375-425 | 400-450 | 425-475 | 450-500 | 500-550 | 550-600 |
25 | 500-550 | 550-600 | 600-650 | 650-700 | 700-750 | 750-800 | ||
32 | 650-700 | 700-750 | 750-800 | 825-875 | 900-950 | 950-1000 |
APPLICABLE MATERIALS:
Chemicals, Mine, Coal, Granite, Rock, Stone, Marble, Griotte, Calcium Carbonate, Domolite, Limestone, Limerock, Calcareous Stone, Conquina, Siliceous Limestone, Chromite Ore, Mineral, Cement, Concrete, Compound, Cobblestone, Iron Ore, Ironstone, Iron-mineral soils, Copper Ore, Azurite, Copper Sulphide Ore, Quartz Stone, Quartzite, Keli Stone, Silestone, Coal, Gold Ore, Basalt, Whinstone, Shaly, Shale, Mudstone, Nonferrous Metals Ore, etc.
RANGE OF APPLICATIONS:
Sand Making Plant, Construction Waste Recycling, Household Waste Processing, Labratory, Quarry, Road, Building, Cement Plant, Building, Highway, Chemical, Metallurge, Coal Mine, Gold Mine, Benification, Mineral Separation, Stone Production, Brick Making, Ore Dressing, etc.
Xinhai Heavy industry, a modern mining machinery manufacturer, is specialized in researching and developing, manufacturing and selling multi-cylinder hydraulic cone crusher. It is located in Boai Industrial District of Aggregate DP single cylinder hydraulic cone crusher machine with 100 tph capacity in Russia City in Henan Province, China, covering an area of more than 133,334 m2. One 20000m2 standard workshop has been built in the first phase with annual production capacity of 100 sets multi-cylinder hydraulic cone crusher and comprehensive annual output value of RMB 160,000,000.
Company cultureXinhai Heavy industry, a modern mining machinery manufacturer, is specialized in researching and developing, manufacturing and selling multi-cylinder hydraulic cone crusher. It is located in Boai Industrial District of Aggregate DP single cylinder hydraulic cone crusher machine with 100 tph capacity in Russia City in Henan Province, China, covering an area of more than 133,334 m2. One 20000m2 standard workshop has been built in the first phase with annual production capacity of 100 sets multi-cylinder hydraulic cone crusher and comprehensive annual output value of RMB 160,000,000.
Contact usYour email address and telephone will not be shared or published!
Please fill in your need products and your message and do not forget mail and/or phone if you like to be contacted.
we are the professional machine manufacturer in China.
I need to ask you some details for sending you the more suitable quotation,
1.what is the raw material do you want to process?
2.what is the capacity per hour do you need?
3.what is the raw material input size?
4.what is the output size of your product?
Of course, free live-chat is available and you can get help immediately.Or you can send me email .
You can get the price list and a Xinhai representative will contact you within one business day.
I hope you can tell me these details,i will give you the best quotation ASAP ,thanks. Your satisfaction is our greatest pursuit, we would like to sincerely for your service! We look forward to your inquiry!
Contact us :
Aggregate DP single cylinder hydraulic cone crusher machine with 100 tph capacity in Russia:Darren
Tel:Aggregate DP single cylinder hydraulic cone crusher machine with 100 tph capacity in Russia67660555
Website: www.hicrusher.com
Aggregate DP single cylinder hydraulic cone crusher machine with 100 tph capacity in Russia:Boai Industrial District, Aggregate DP single cylinder hydraulic cone crusher machine with 100 tph capacity in Russia City, Henan Province, China
Marketing Center Address:Room 609,East Tower of Xiyuan International Plaza,Jianshe Road,Zhengzhou,China
Aggregate DP single cylinder hydraulic cone crusher machine with 100 tph capacity in Russia is the orginal cone crusher, which internationly advanced and longtime popular.
Single Cylinder Hydraulic Cone Crusher, hydraulic cone crusher and symons cone crusher concentrates on the high-frequency, optimization of cavity and reasonable impact, Single Cylinder Hydraulic Cone Crusher based on conception of laminated crushing principle and more crushing and less grinding, Aggregate DP single cylinder hydraulic cone crusher machine with 100 tph capacity in Russia heavily.Single Cylinder Hydraulic Cone Crusher is widely used to crush all kinds of ores and rocks with medium hardness and above, metalliferous and non-metalliferous ores, cement, construction and sand.Single Cylinder Hydraulic Cone Crusher The materials can be iron stone, non-ferrous metal ore, granite, limestone, quartzite, sandstone, cobble, etc.
HSGDJDHF
Single Cylinder Hydraulic Cone Crusher , sometimes called gyratory cone crushers. Single Cylinder Hydraulic Cone Crusher crush rock between two conical surfaces called the mantle (lower movable surface) and the concave liners above. These surfaces do the actual crushing and are constructed of high manganese steel. Aggregate DP single cylinder hydraulic cone crusher machine with 100 tph capacity in Russia can be used in a primary crushing role but are typically seen more often in a secondary or tertiary position. There are two types of cone crushers with respect to the pay product size: standard head and fine head cone crushers. Fine head cone crushers have a reduced-size opening and so can't take as large of feed material but can produce a finer output product. Aggregate DP single cylinder hydraulic cone crusher machine with 100 tph capacity in Russia action is achieved by the eccentric movement of the lower portion of the main shaft. The mantle is connected to this main shaft. Single Cylinder Hydraulic Cone Crusher The gyrating action of the main shaft causes the gaps between the mantle and liners to change dimension and perform the actual crushing.
JHEDEF
